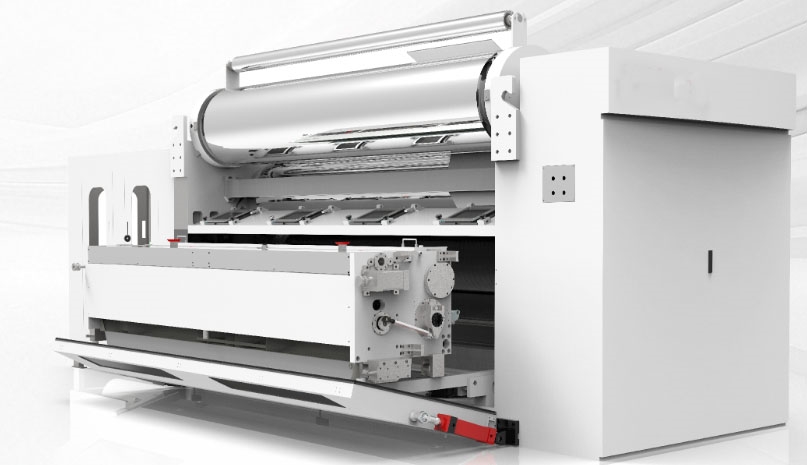

The bottom-pull corrugated roll assembly features a patented steam quick-change connector, enabling roll replacement within 15 minutes. The gap automatically adjusts to the correct positive pressure guide position based on memory, reducing noise and vibration. Suitable for high-speed, wide-format operation, it saves energy.

The roll assembly uses a bottom and side combination positioning system for more stable operation.

A built-in steam spray system for corrugated paper provides wet heating, increasing production speed and reducing the risk of paper breakage.

Production configuration includes: pressure roll/corrugated roll gap, glue roll/corrugated roll gap, glue application gap, roll pressure, and pressure roll pressure. Process parameters can be intelligently controlled based on machine speed and material.

Ultrasonic liquid level detection and low glue warning ensure continuous machine operation, avoiding downtime and waste.

The glue application section is equipped with a cold water return tray and a cold water splash guard to prevent severe glue clumping and reduce glue loss. Flexible loading and minimum gap control in the glue application section effectively protect the application roller.

The entire glue application section can be removed for easy maintenance.

Servo-driven automatic positioning of the glue baffle and servo-driven operation of the application roller.
