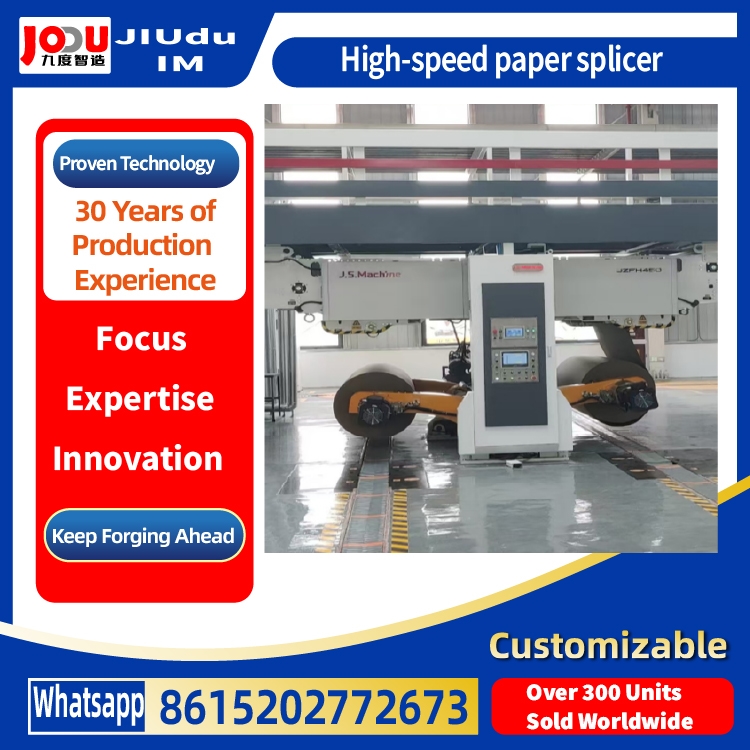

High-speed paper splicer pre-drive type:

Mechanical configuration:

1. Customizable extended version

2. Maximum speed: 450m/min

3. Width: Customizable, currently up to 3.6 meters

4. Splicing reaction time: Approximately 0.3 seconds

5. Air source: Dry and clean air source with a minimum pressure of 0.6MPa
6. Requirements:

Power Supply: 380V, 50Hz, 20A

Control Power Supply: 24V

7. Paper Roller Brake: Pneumatic multi-point brake + pre-drive full servo brake

8. AFE Active Energy Feedback

9. Full Servo Control

Performance Features:

1. Paper Connection Method: Overlapping type

2. Suitable for various base papers of 50g and above

3. Simple and easy-to-understand paper roll replacement and preparation operation

4. Full Servo Control: Paper roll, carriage, and traction all adopt servo control for precise positioning;

5. Unique tension model and algorithm for precise tension control, friendly to low grammage, minimal base paper fluctuation, and flatter cardboard;

6. Millisecond-level whole-line coordination
